Simplecom - CAD418 DisplayPort DP Male to Male DP1.4 Cable 32Gbps 4K 8K - 1.8M

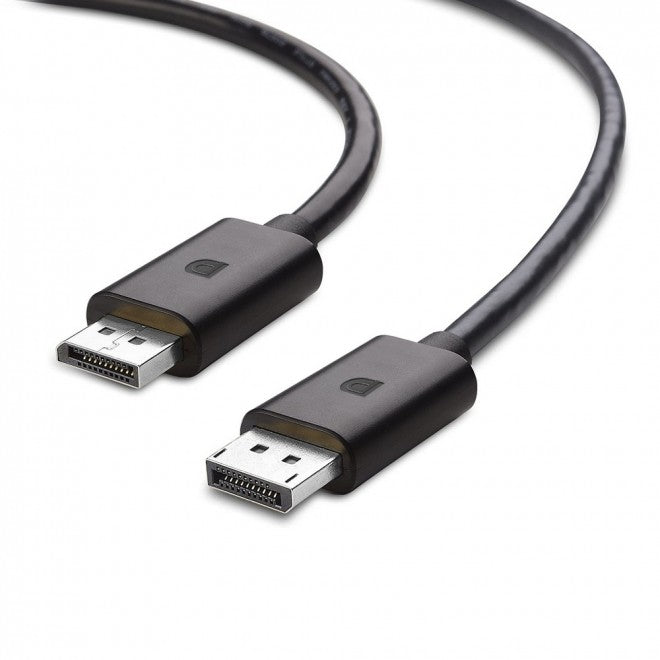

Simplecom CAD418 DisplayPort 1.4 Cable – 1.8m

General Description

Connect a DisplayPort-equipped computer or graphics card to a compatible monitor with the Simplecom CAD418 DisplayPort 1.4 Cable. Designed for high-resolution video, high-refresh-rate gaming and digital audio transmission, it supports bandwidth up to 32Gbps and resolutions up to 8K.

Its latch-free connectors allow easy insertion and removal while reducing the risk of damage to DisplayPort sockets. Internal aluminium-foil shielding helps maintain stable audio and video signal transmission.

Key Features

• DisplayPort male-to-male connection

• Compliant with DisplayPort 1.4 specifications

• Bandwidth up to 32Gbps

• Supports resolutions up to 8K

• Up to 8K at 30Hz

• Up to 4K at 144Hz

• Up to 2K at 165Hz

• Up to 1080p at 240Hz

• Supports HDR and 10-bit colour

• Supports RGB 4:4:4 colour format

• Transmits digital video and audio through one cable

• Backwards compatible with earlier DisplayPort standards

• Latch-free connectors help protect device ports

• Aluminium-foil shielding supports stable transmission

• Practical 1.8-metre length

Technical Specifications

Specification	Details
Brand	Simplecom
Model	CAD418
Product type	DisplayPort cable
Connector 1	DisplayPort male
Connector 2	DisplayPort male
DisplayPort version	1.4
Maximum bandwidth	Up to 32Gbps
Maximum resolution	7680 × 4320
Supported video modes	8K@30Hz, 4K@144Hz, 2K@165Hz, 1080p@240Hz
Colour support	10-bit, RGB 4:4:4
HDR support	Yes
Audio transmission	Yes
Backwards compatibility	DP 1.3, 1.2, 1.1, 1.1a and 1.0
Locking mechanism	No
Shielding	Aluminium foil
Cable length	1.8m
Connection direction	DisplayPort to DisplayPort

Compatibility

Suitable for desktop computers, laptops, graphics cards, monitors and other devices equipped with full-size DisplayPort connections.

This cable does not connect directly to HDMI, Mini DisplayPort or USB-C ports without a compatible active adaptor. Available resolutions and refresh rates depend on the capabilities of both connected devices.

Package Contents

• 1 × Simplecom CAD418 DisplayPort 1.4 Cable – 1.8m

Important Information

To achieve 8K or high-refresh-rate 4K output, the source device and display must support the required resolution, refresh rate, colour format and DisplayPort version. Performance may also depend on graphics settings and hardware capabilities.
