TP-Link - UB500 Bluetooth 5.0 Nano USB 2.0 Adapter, Add Bluetooth To Your Devices, Wireless Connectivity, Windows 10/8.1/7, Plug and Play

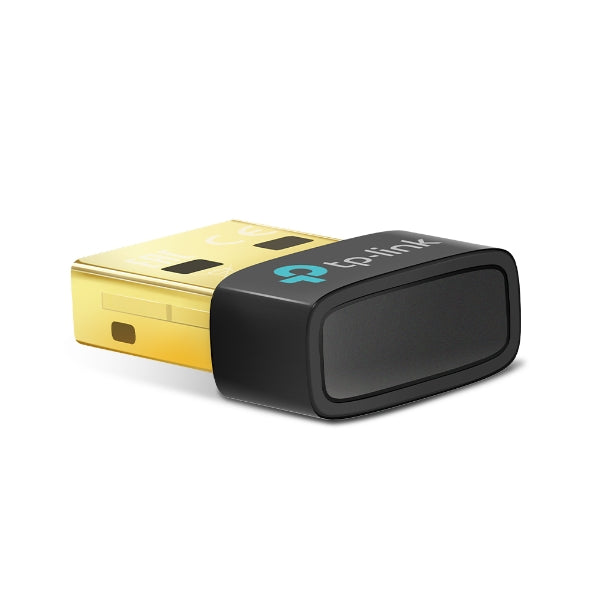

TP-Link UB500 Bluetooth 5.0 Nano USB 2.0 Adapter

General Description

Add Bluetooth connectivity to a compatible Windows desktop or laptop with the compact TP-Link UB500 Bluetooth 5.0 Nano USB Adapter. Simply connect it to an available USB-A port to pair your computer with Bluetooth-enabled accessories such as wireless headphones, speakers, keyboards, mice, game controllers, smartphones and printers.

Bluetooth 5.0 technology provides improved speed, coverage and connection stability compared with older Bluetooth 4.0 adapters. It is also backwards compatible with earlier Bluetooth versions, allowing many existing wireless accessories to remain connected.

Its ultra-compact nano design occupies minimal space and can generally remain connected during everyday use or transport. The UB500 is an easy and affordable way to upgrade a computer that does not include built-in Bluetooth or to replace an unreliable internal Bluetooth connection.

Key Features

• Adds Bluetooth to your computer: Enables compatible desktop and laptop computers to communicate with Bluetooth devices.

• Bluetooth 5.0 technology: Delivers improved speed, range and connection stability compared with Bluetooth 4.0.

• Backwards compatible: Supports devices using earlier Bluetooth versions, including Bluetooth 4.0, 3.0, 2.1, 2.0 and 1.1.

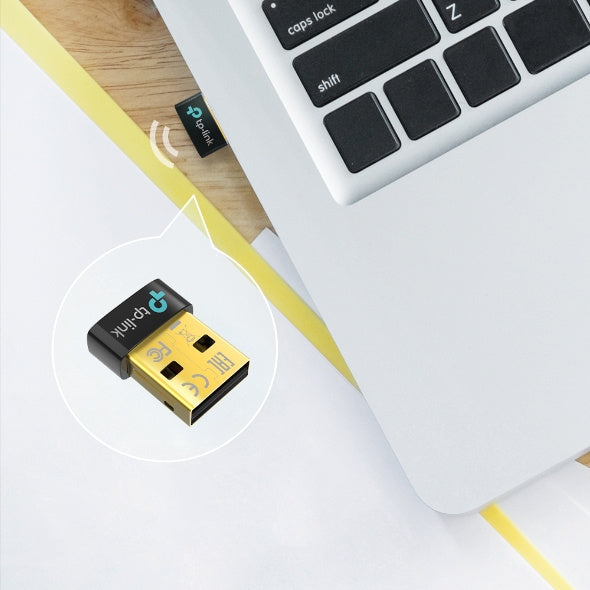

• Nano-sized design: The compact body remains discreet when installed in a USB port.

• USB 2.0 interface: Connects directly to a standard USB Type-A port without an external power supply.

• Plug-and-play convenience: Automatically recognised by many supported Windows systems, although a driver may be required.

• Broad accessory support: Connect compatible headphones, speakers, keyboards, mice, controllers, phones, printers and other Bluetooth equipment.

• Multiple-device capability: Supports pairing with up to seven Bluetooth devices, subject to device type and operating conditions.

• Up to 20-metre range: Provides a broad connection range in an open environment with minimal interference.

• Bluetooth Low Energy support: Enables communication with compatible low-power Bluetooth accessories.

• Audio profile support: Compatible with standard Bluetooth audio and hands-free profiles.

• Portable and unobtrusive: Ideal for home, office, study and travel use.

Technical Specifications

Specification	Details
Brand	TP-Link
Model	UB500
Product type	Bluetooth nano USB adapter
Bluetooth version	Bluetooth 5.0
Bluetooth class	Class 1
Host interface	USB 2.0 Type-A
Approximate wireless range	Up to 20 metres in open space
Maximum paired devices	Up to 7
Supported audio codecs	SBC and AAC
Supported profiles	A2DP, AVRCP, HFP and HSP

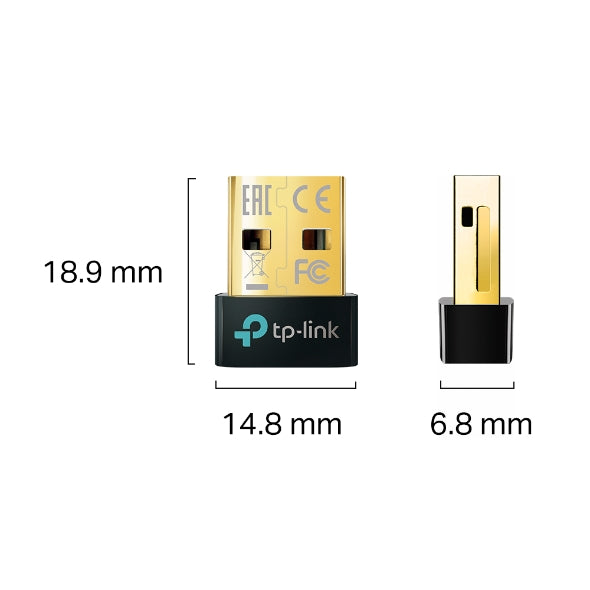

Dimensions	14.8 × 6.8 × 18.9 mm
Operating temperature	0°C to 40°C
Operating humidity	10%–90%, non-condensing
Storage humidity	5%–90%, non-condensing
External power required	No
Antenna	Internal
Colour	Black
Form factor	Nano

Compatible Devices

The UB500 can provide wireless connectivity between a supported Windows computer and devices such as:

• Bluetooth headphones and headsets

• Wireless speakers

• Bluetooth keyboards and mice

• Compatible game controllers

• Smartphones and tablets

• Bluetooth-enabled printers

• Other supported Bluetooth accessories

Device functions depend on the accessory, Bluetooth profile, driver and Windows configuration. Pairing several products is supported, but not every paired device may be able to transmit data or audio simultaneously.

Operating System Compatibility

Compatible operating systems include:

• Windows 10

• Windows 8.1

• Windows 7

Later hardware revisions may also support Windows 11 through the appropriate TP-Link driver. Always check the adapter’s hardware version and download page before installation.

The UB500 is not officially specified for macOS, Linux, ChromeOS, gaming consoles, televisions or in-car entertainment systems. It is intended primarily for Bluetooth connectivity on supported Windows PCs.

Installation Instructions

1. Insert the UB500 into an available USB Type-A port on the computer.

2. Allow Windows to detect and configure the adapter.

3. Install the appropriate TP-Link driver if Windows does not configure it automatically.

4. Open the Windows Bluetooth settings.

5. Enable Bluetooth and select Add Bluetooth or other device.

6. Place the accessory into pairing mode and select it from the available-device list.

7. Follow the on-screen instructions to complete pairing.

For the best performance, use the latest driver for the adapter’s exact hardware revision.

Installation Notes

If the computer already has built-in Bluetooth, disable the existing Bluetooth adapter before installing the UB500 to help prevent driver or connection conflicts.

Range and performance may be reduced by:

• Walls and large furniture

• Metal computer cases

• USB 3.0 electrical interference

• Wi-Fi equipment using the 2.4GHz band

• Distance between connected devices

• Low battery levels in wireless accessories

• Other nearby Bluetooth products

If signal quality is poor on a desktop computer, try another USB port or use a suitable USB extension cable to position the adapter away from the metal computer case.

Audio and Controller Information

The UB500 supports SBC and AAC audio codecs but does not support aptX or aptX HD. Audio quality and microphone performance depend on the connected headset, Windows configuration and selected Bluetooth profile.

Compatible controllers can be used for supported PC games. The adapter does not make controllers universally compatible with every game or console, and it is not intended to add Bluetooth functionality directly to PlayStation, Xbox or Nintendo consoles.

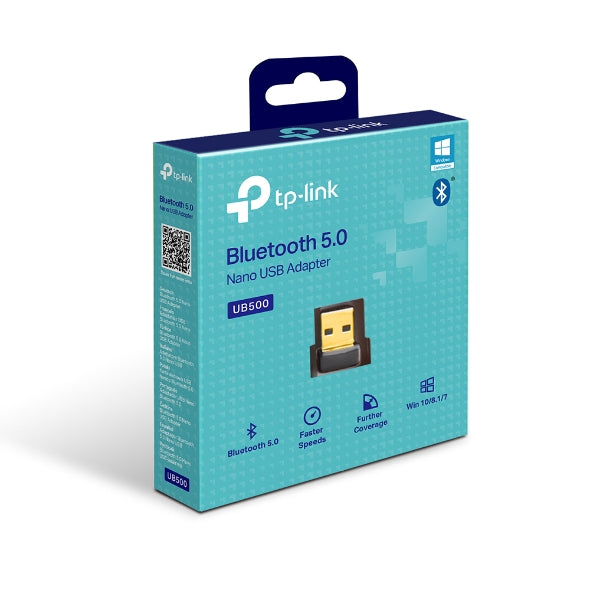

Package Contents

• 1 × TP-Link UB500 Bluetooth 5.0 Nano USB Adapter

• 1 × Quick Installation Guide

Important Information

TP-Link has released different UB500 hardware revisions in some markets, including versions supporting newer Bluetooth standards. This description applies specifically to the Bluetooth 5.0 version. Check the model and hardware-version label on the packaging before publication or dispatch.

The advertised range is based on open-space conditions. Actual speed, distance and device capacity vary according to the environment, interference, computer hardware and connected accessories.
