Ubiquiti UniFi Wi-Fi 7 AP U7-Pro, Ceiling-mount, AP 6 GHz Support, 2.5 GbE Uplink, 9.3 Gbps Over-the-air Speed, PoE+ Power, 300+ Device

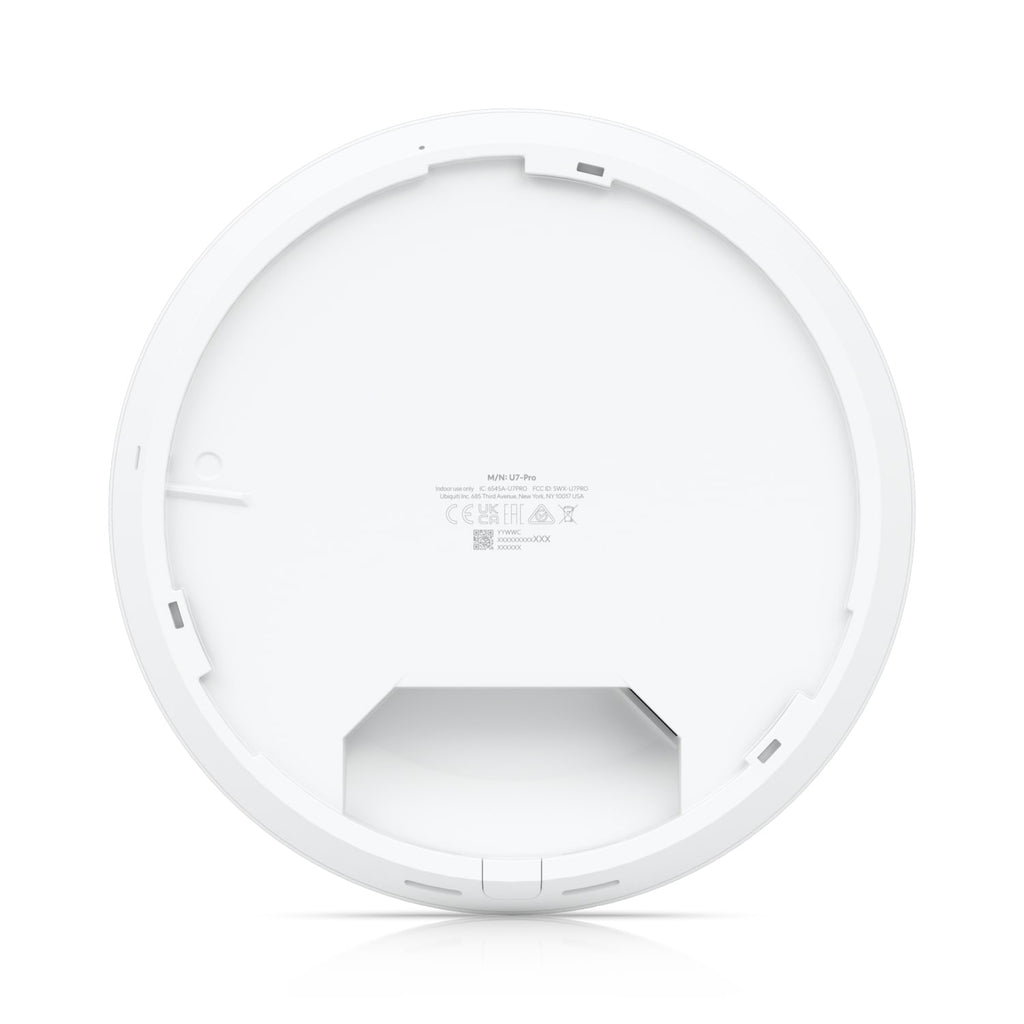

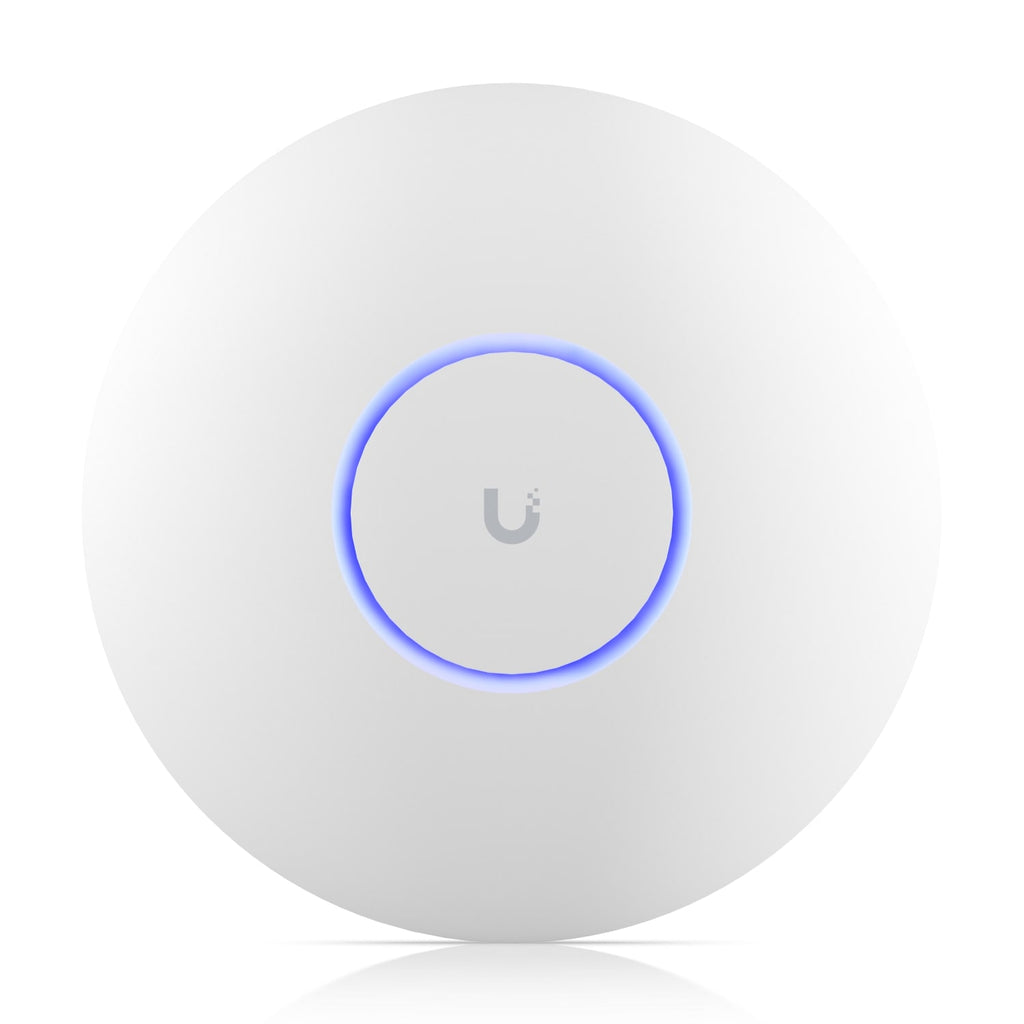

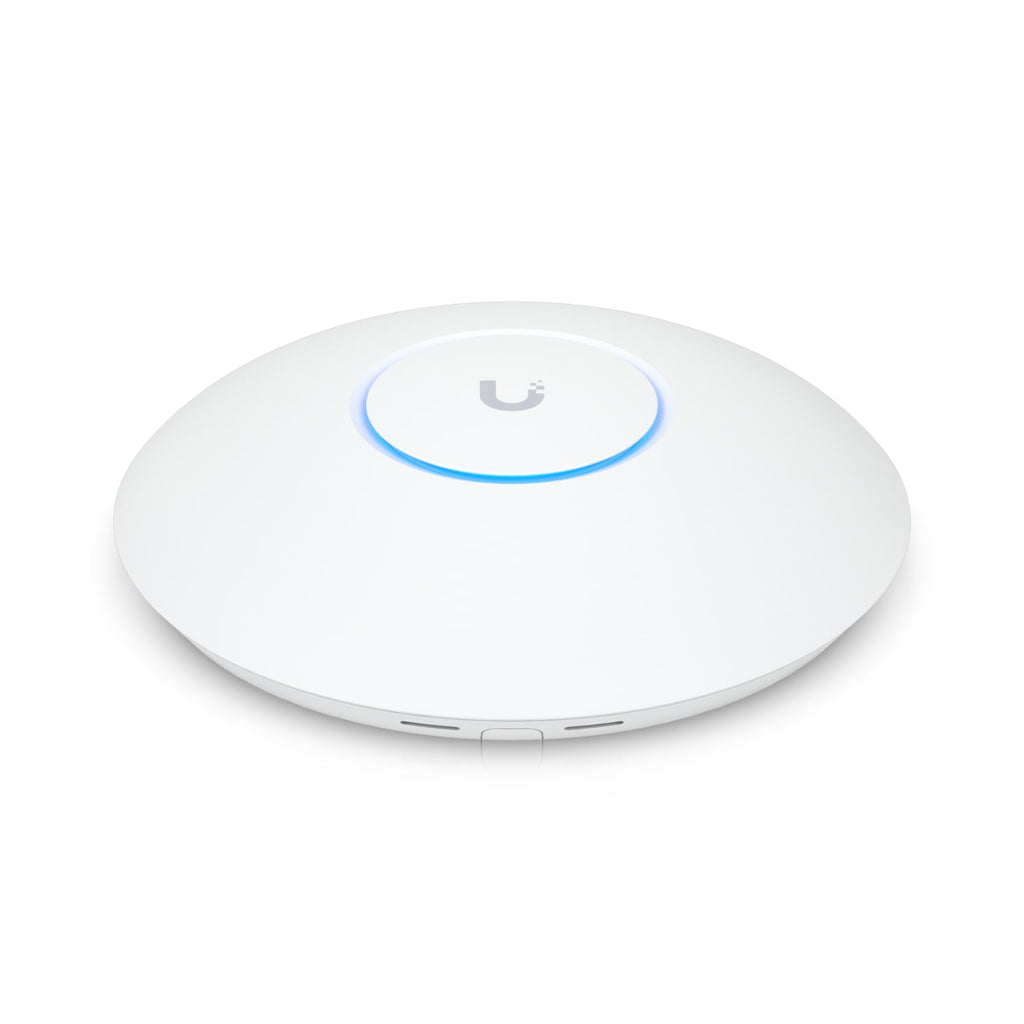

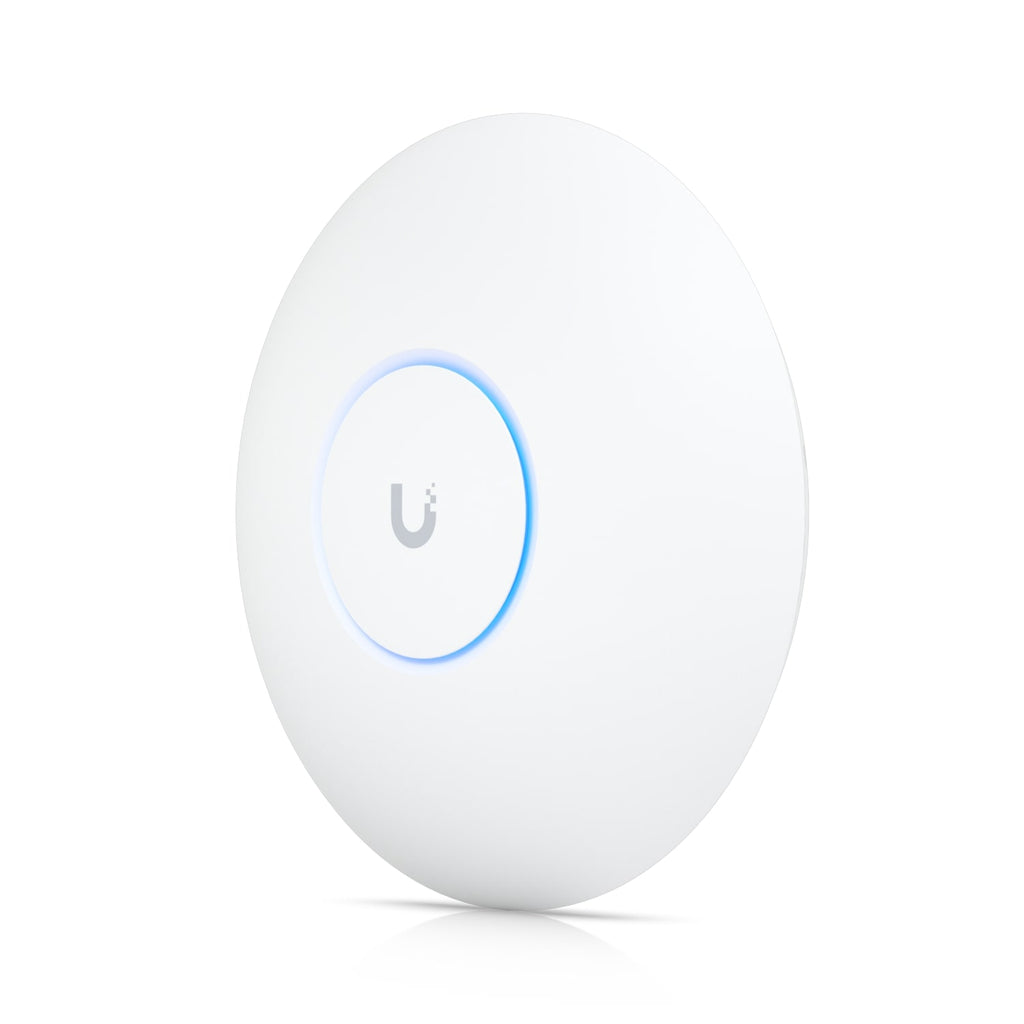

Ubiquiti UniFi U7 Pro Wi-Fi 7 Access Point

General Description

Upgrade your business, office or advanced home network with the Ubiquiti UniFi U7 Pro. This ceiling or wall-mounted Wi-Fi 7 access point provides tri-band connectivity across 2.4GHz, 5GHz and 6GHz, delivering high wireless capacity for demanding environments.

With six spatial streams, support for more than 300 connected clients and an estimated coverage area of up to 140m², the U7 Pro is ideal for workplaces, hospitality venues, retail spaces and high-density homes. A 2.5GbE uplink helps reduce wired-network bottlenecks, while PoE+ carries power and data through a single Ethernet cable.

Key Features

• Wi-Fi 7 technology: Supports the latest IEEE 802.11be wireless standard.

• Tri-band connectivity: Operates across 2.4GHz, 5GHz and 6GHz bands.

• Six spatial streams: Uses 2×2 MU-MIMO on each radio band.

• 6GHz support: Provides additional spectrum for compatible Wi-Fi 6E and Wi-Fi 7 devices.

• Up to 320MHz channels: Enables high throughput for compatible Wi-Fi 7 clients.

• 2.5GbE uplink: Provides faster wired backhaul than standard Gigabit Ethernet.

• 300+ client capacity: Designed for environments with many simultaneous connected devices.

• Up to 140m² coverage: Suitable for medium-to-large indoor areas, depending on installation conditions.

• PoE+ power: Receives power and network data through one Ethernet cable.

• Flexible mounting: Includes professional hardware for ceiling or wall installation.

• Centralised UniFi management: Configure networks, clients, guest access and security through UniFi Network.

• Advanced business features: Supports wireless meshing, band steering, fast roaming, VLANs, captive portals and client isolation.

Technical Specifications

Specification	Details
Brand	Ubiquiti
Product range	UniFi
Model	U7 Pro / U7-Pro
Wi-Fi standard	Wi-Fi 7 / IEEE 802.11be
Frequency bands	2.4GHz, 5GHz and 6GHz
Spatial streams	6
MIMO	2×2 MU-MIMO per band
Maximum 6GHz data rate	5.8Gbps with 320MHz channel width
Maximum 5GHz data rate	4.3Gbps with 240MHz channel width
Maximum 2.4GHz data rate	688Mbps with 40MHz channel width
Network interface	1 × 1/2.5GbE RJ45
Coverage area	Up to 140m²
Client capacity	300+
Maximum BSSIDs	8 per radio
Power method	PoE+
Supported voltage	44–57V DC
Maximum power consumption	21W
Dimensions	Ø206 × 46 mm
Weight	680g
Enclosure	Polycarbonate and metal
Mounting	Ceiling or wall
Operating temperature	-30°C to 40°C
UniFi Network requirement	Version 8.0.28 or later
Intended environment	Indoor

Compatibility and Requirements

The U7 Pro requires:

• A PoE+ network switch or compatible PoE+ injector

• Cat5e or better Ethernet cabling; Cat6 is recommended for 2.5GbE

• A UniFi Console, Cloud Gateway or compatible UniFi Network application

• Compatible client devices to access Wi-Fi 7 and 6GHz features

The availability and permitted use of the 6GHz band depend on local regulations and the configured country or region. Older Wi-Fi devices can connect using supported previous-generation standards.

Package Contents

• 1 × Ubiquiti UniFi U7 Pro Access Point

• 1 × Professional ceiling/wall mounting assembly

• 1 × Installation hardware

• 1 × Installation documentation

PoE+ injector, network switch and Ethernet cable are not included unless specifically stated.

Important Information

Advertised wireless speeds are theoretical over-the-air rates, not guaranteed internet speeds. Actual performance depends on the client device, channel width, interference, network configuration, cabling, uplink speed and internet service.

This is an access point rather than a complete router or modem. Professional placement and configuration are recommended for optimum coverage and roaming performance.
